Interchangeable Type R3-R12 Round Corner Cut Hole Puncher for Plastic Bag Film Quick Change

Product Overview

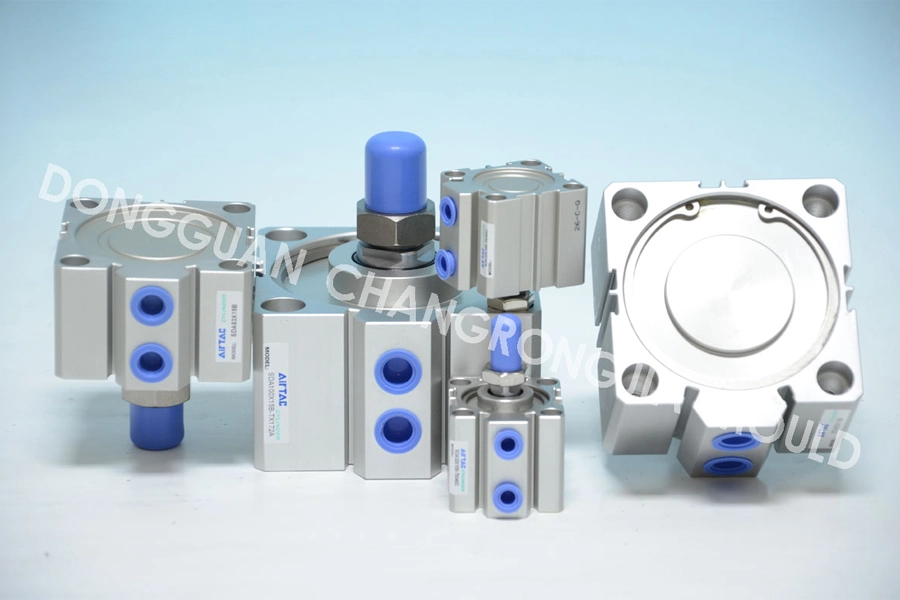

Constructed with an aerospace-grade aluminum alloy die base, imported Swedish ASP steel punch pins, and AirTAC cylinders, this rounded-corner cut punch unit is suitable for processing films ranging from 10 to 360μm in thickness and various flexible packaging materials. It offers a maximum operating speed of 200 cycles per minute, a machining precision of 0.001mm, and an estimated service life of 18 to 20 million cycles.

Customer Pain Points & solution

In the production of packaging for food, personal care products, and various types of flexible packaging, different bags often require different corner cut size. Configuring a complete set of equipment for each corner specification not only increases procurement and storage costs but also necessitates disassembly, alignment, and recalibration during product changeovers.

This changeable type puncher features an interchangeable, quick-release design, allowing a replaceable mold base to accommodate corner cut pins ranging from R3 to R12. The easy replacement process minimizes the need for machine reassembly, making it ideal for handling orders with diverse specifications and production runs requiring frequent changeovers.

Core Advantages

· Qucik and easy to change

Just 15 seconds to change; no need to align.

· Swedish ASP Wear-Resistant Punch Pin

The corner-rounding punching blade is made of imported Swedish ASP steel, featuring high hardness and excellent wear resistance.

· Save on costs and shipping fees.

In the future, you will only need to buy replacement punch pins, as the mould base can continue to be used; the pins are lightweight, low shipping costs.

· Multi-lane rounded corner cut solution

In addition to the single-unit puncher, we have movable and interchangeable corner cut puncher for multi-lane —such as 2/3/4 lane bags setups—compatible with high-speed multi-lane bag-making machine.

Quality control, ordering and after-sales service

Pre-shipment inspection

Each punchers undergoes inspection according to the confirmed order, including appearance, hole size, die base size, mounting hole positions, punch pin and lower die alignment, cylinder movement, continuous operation, punched sample, and waste material discharge. When customers provide material samples, trial punching can be arranged under agreed conditions, and pictures or videos can be provided for confirmation as needed.

Ordering process

Inform us of the hole size and shape.

Inform us of the hole’s location on the bag and the material feeding direction; if necessary, provide the bag size.

Inform us of the bag’s material type and thickness.

Confirm the drawings, quantity, price, and delivery date, and make payment.

Arrange production, inspection, and testing.

Pack and ship.

Provide installation guidance, and maintenance support.

After-sales support

In case of any punching abnormalities, please provide the product number, order number, problem description, photos of the punched sample, operating video, material and thickness, current air pressure, and punching speed. The CRJ team will assist in diagnosing alignment, air supply, blade wear, waste material discharge, or equipment synchronization issues based on this information. The warranty period, scope, and handling methods for normal wear are subject to the quotation or sales contract.

Why choose Changrongjia?

Founded in 1996

CRJ Group has long been engaged in businesses related to plastic bags, flexible packaging, and precision pneumatic hole punching dies.

Focus on hole punching solutions for plastic packaging

Our product range covers interchangeable type hole puncher, round hole, easy-tear, butterfly hole, multi-hole, triangular hole, handle hole, and custom-made hole punches, heat sealing bar, cold-cut die, double cutting knife, and vertical packaging machine punching dies, etc.

Precision machining capability

We are equipped with CNC machining centers, high-precision slow wire EDM and medium wire EDM equipment, and has established a professional R&D department and assembly and debugging department, possessing complete assembly and testing capabilities.

Patents and System Certification

Multiple patents related to punching equipment and punches, and certified by ISO9001 and ISO14001 systems, holding European certification and CE certificates.

Global service experience

Our products and services cover more than 90 countries worldwide, providing remote selection, drawing confirmation, installation, and after-sales maintenance support.

FAQ

Are the rounded corner cut dimensions limited to the R3–R12 range?

R3–R12 is the standard range for corner radii. Other dimensions can be customized.

What information is required to provide a quote?

Please provide the hole type and size, material and thickness, number of layers, punching location, feed chute requirements, equipment installation dimensions, quantity, and destination.
